1. It can be bended and fixed as will
2. It can be cut by every three LEDs
3. It is fixed by 3M sticky tape on the back.
4. The length：5m
5. 300 LEDs/reel, 5000*10*1.2MM
6. Voltage: DC12V;Current:1.6A/m;Power:19.2W/m
7. LED type： OSRAM 5630 SMD LED
8. Color：cool white/warm white/daylight white
9. Waterproof and non-waterproof model are available
10.More colors are available
11.12V and 24V are available

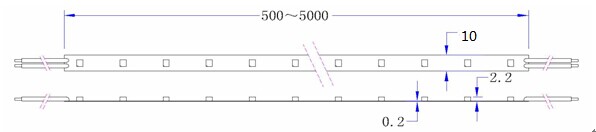

Dimmension:
Application:
1、DIY home decoration
2、Hotel，KTV and such entertainment venue
3、Path instructions and outline decoration
4、Decorate for back lighting of billboard, advertising signs, channel signal and so on.
5、Decoration for festival, Activity venue set, the exhibition venue.
6、Automobile chassis decoration, high brake indicator, body decoration, interior decoration.
Limited data（Ta=25°C）：
Item | 代号 | 极限参数 | 单位 |
Forward current | IF | 12000 | mA |
Power | PD | 130 | W |
Anti static voltage | ESD | 2000 | V |
Working temperature | Topr | -40~+85 | °C |
Storage temperature | Tstg | -40~+85 | °C |
Optical characteristics (Ta=25°C)
Model | Color | Angle | LED lumen | Waterproof rank | Color temperature |
GL-5630-60N/C | White | 120 | 45-50LM | IP20/IP67 | 2700-7000K |
Remark：1、The tolerance for luemn:±15%。2、LED lumen and color temperature can be customized.
Electronic Parameters
Model | LED type | Current/reel | Power/reel | Size(mm)/reel | Color | LED Q'ty/reel | Input voltage | |
GL-5630-60N/S | OSRAM 5630 | 10A | ≤100 | 5000*10 | White | 300 | DC12V/24V |
