Advantages

1. Great Lighting source,
2. Bridgelux 60mil LED-best model at the moment, the bigger size the better quality, but most other factories use 45mil even 38mil LED.
3. Low Power consumption
4. High luminosity and long life time
5. Environmentally friendly
6. Excellent opto-electronic performance
7. Optimized heat fins for natural convection
8. High efficiency cooling system
9. High efficiency LED Power driver: Meanwell from Taiwan which is 5 years warranty time
10. High light transmission PC protection cover.

Instructions

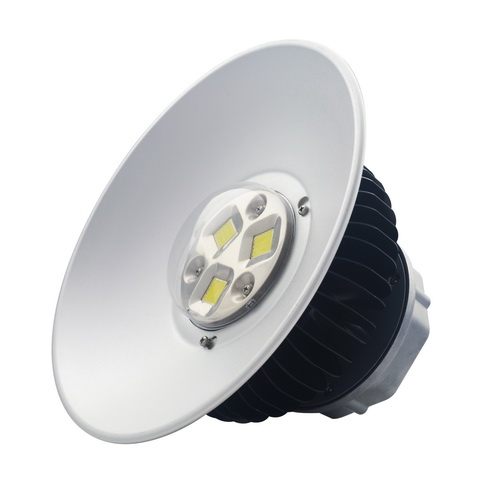

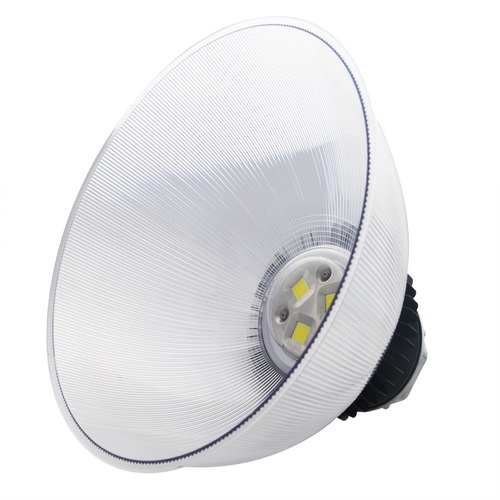

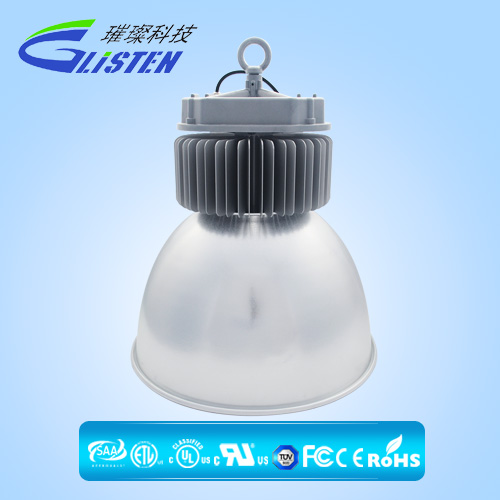

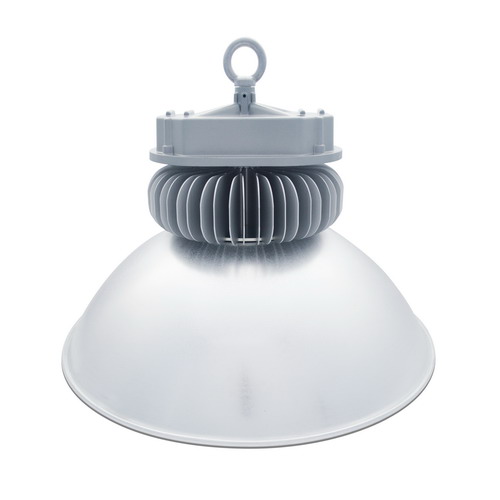

LED High Bay 250W, CSA, ETL cert. 25000lm LED High Bay Light.

We guarantee 7years warranty time for CHIP; 5years warranty time for PSU; Light source: Bridgelux 60mil LED; Driver: Meanwell; 100lm/w
We guarantee it will be at least 90% brightness within 3years.
As it is IP65, both outdoor and indoor allowed

Product  Specification

Parameter	Description
Power	250W
Input Voltage	AC85~305V  50/60Hz
Color Temperature	3000-6500k
Light Efficiency	>90LM/W
Power Factor	>0.96
Total harmonic index	>20%
Flux	25000LM
LED lifetime	>50000H
Operation temperature	-30℃~+50℃
Light Source	Bridgelux   Chip
Optical Design	Special   Batwing and Asymmetrical Light Patterns
Color Rendering Index	Typical 75
Housing	120 degree Aluminum cover
Weight	13.6kg  with Power Supply Unit
Installation Tube Diameter (OD2)	600 mm (23.6”)
IP Rating	IP 65



Typical Applications:

●  Warehouse Lighting
●  Garage Lighting
●  Workshop Lighting
●  Public Lighting
●  Parking Lot Lighting

●  Walkway  Lighting

●  Other open spaces lighting
