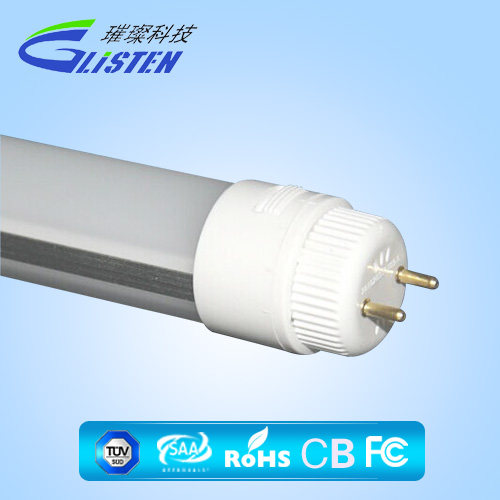

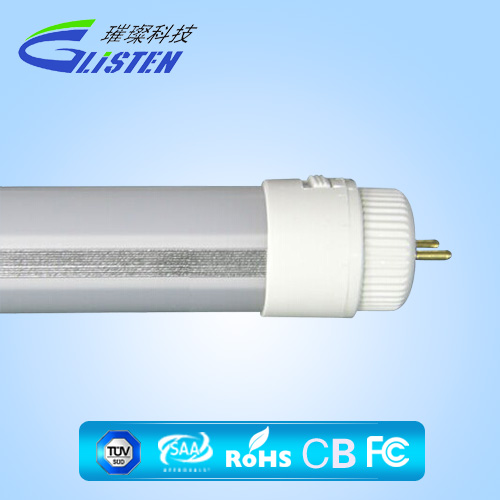

Model | GL-T801 |
Dimension | 588x 26mm(2FT), 895*26mm(3FT) 1198*26mm(4FT), 1498*26mm(5FT)
|
Voltage | AC85V-265V 50/60HZ |
Power | 10W, 14W, 20W, 24W |
LED Type | SMD3014 |
LED Quantity | 96pcs, 132pcs, 192pcs, 240pcs |
Lumen (10% ) | 1000lm,1400lm, 2000lm, 2400lm |
Color Temperature (CCT) | 2800-3500K, 4000 - 4500K, 5500 - 6500K |
Beam Angle | 120° |
Color Rendering Index(CRI) | Ra >80 |
Power Supply Efficiency | >90% |
Luminous Efficiency | 100lm/W |
Power Factor (PF) | >0.95 |
Total Harmonic Distortion (THD) | ≤15% |
IP Rank | IP 44 |
Certificate | TUV/SAA/CB/SAA/C -Tick/PSE/CE/RoHS |
Exterior Isolated LED Driver | Isolated LED Transformer |
End Cap Type | 180 degree lockable Rotatable End Cap |
Pin Type | T8-G13 |
Material | Aluminum housing, PC cover |
Optional Cover | Clear & Frosted Cover |
Application:
1.Advertisment panel
2.Fridge
3.ATM machine
4.School, university, hospital, hotel
5.Conference, meeting room, show room, showcase
6.Commercial complexes
7.Factory, plant, warehouse, office
8.Supermarket, department store
Packing information:
Shenzhen Glisten Technology Co.,Ltd
Add:4F,Huiyida Industrial Building, Tangxiayong 3rd
Industrial Area, Guangtian Road, Songgang Town,
BaoAn District, Shenzhen,China
Dongguan Luowei Electricity Co.LTD( Demestic department) Mobile:13532901022 13823646233
