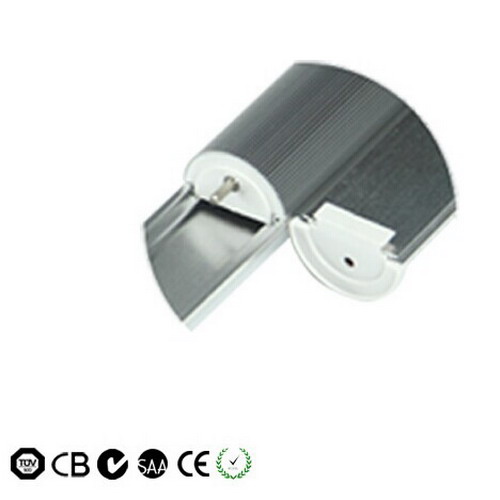

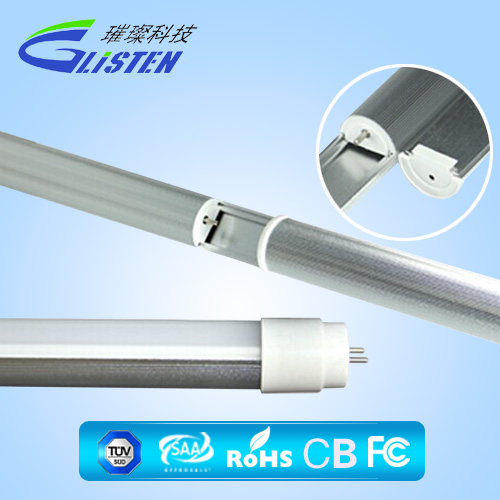

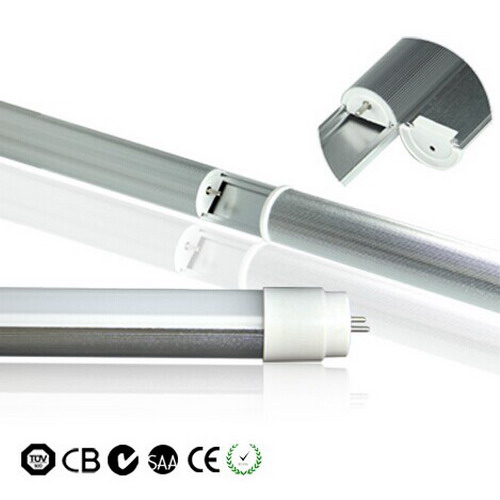

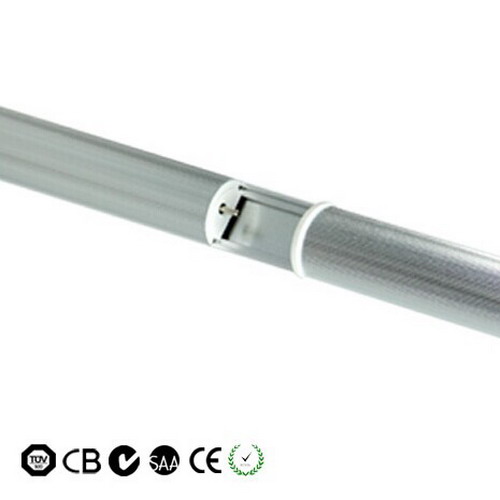

1.Designed all by ourselves with detachable driver, very easy to maintain.
2.First CB approved lighting manufacturer for LED tube in China which you can easily get local certificate according the CB certificate.
3.Also C-TICK,SAA,TUV approved.
4.Used TUV approved drivers which are produced and designed by ourselves, which could ensure much better compatibility than many other manufacturers.
5.Clear or frosted cover is available for your selection.
6.LED transformer can be replaced, spare transformer will be provided to extend your tubes' lifetime.It is more economic than change the whole tube.
Model | GL-T804 |
Dimension | 588x 26mm(2FT), 895*26mm(3FT) 1198*26mm(4FT), 1498*26mm(5FT)
|
Voltage | AC85V-265V 50/60HZ |
Power | 10W, 14W, 20W, 24W |
LED Type | SMD3014 |
LED Quantity | 80pcs, 144pcs, 192pcs, 240pcs |
Lumen (10% ) | 1000lm,1400lm, 2000lm, 2400lm |
Color Temperature (CCT) | 2800-3500K, 4000 - 4500K, 5500 - 6500K |
Beam Angle | 120° |
Color Rendering Index(CRI) | Ra >80 |
Power Supply Efficiency | >90% |
Luminous Efficiency | 100lm/W |
Power Factor (PF) | >0.95 |
Total Harmonic Distortion (THD) | ≤15% |
IP Rank | IP 44 |
Certificate | TUV/SAA/CB/SAA/C -Tick/PSE/CE/RoHS |
Exterior Isolated LED Driver | Isolated LED Transformer |
End Cap Type | 180 degree lockable Rotatable End Cap |
Pin Type | T8-G13 |
Material | Aluminum housing, PC cover |
Optional Cover | Clear & Frosted Cover |
