Advantages

1.Double-side PCB
2.High luminance efficience and low power consumption
3.Easy Installation, 3M adhesive back side
4.Flexible, bend randomly according requirements.
5.No need the constant-current power feed

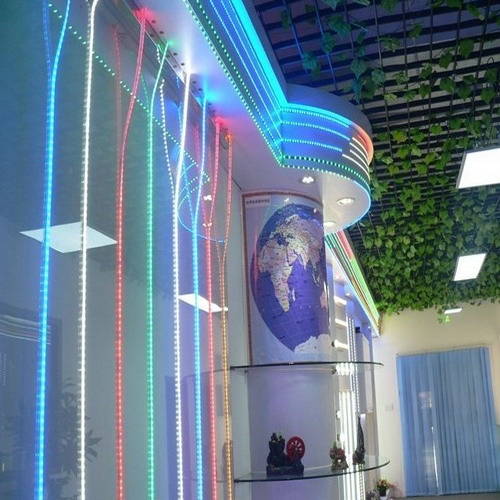

6.Best choice for holiday season, show and exhibition’s decorating

Instructions

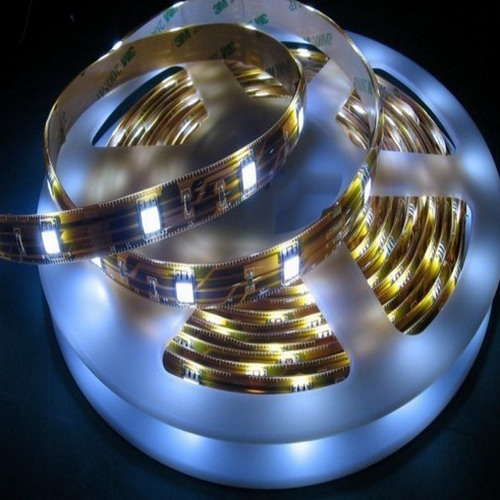

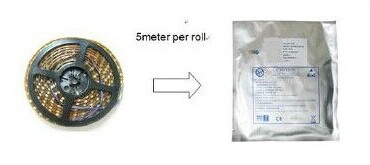

1)Package: 5meter/reel

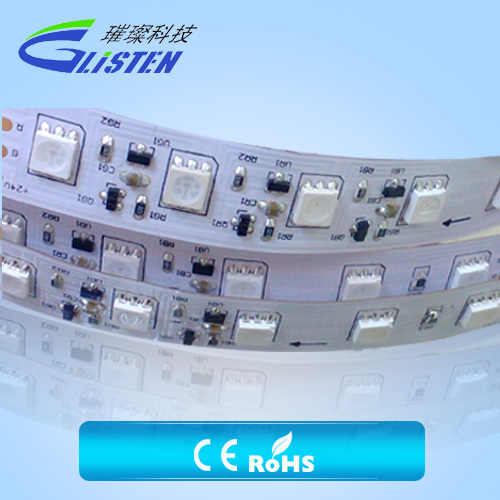

2)Use 3-chip SMD5050 LEDs

3)LED Q'ty:60LEDs/M or 30LEDs/M

4)Size:5000*10-14mm

5)LED beam angle:120 degree

6)Every 3LEDs cuttable along the cutting mark

7)Emitting Color: any color is available

8）Waterproof and non-waterproof models are both available

9)waterproof model can be silicon tube, adding glue, silicon tube filling with adding glue, coating.



Main specs provided:



Package:





Note:

1.Effective power for switch power is only 85% of power's label, so LED product's load power should be at least more than 15% when user choose feeding power.



2. Make sure the right and stable anode and cathode when installing cables, and also attention to the driving voltage in case to damage components and fire accident when circuit pass through voltage.



3..Forbidden to connect cables when power on, putting power in cool place, so that it ensures approprite working temperature.



4. Make sure strip's grade of waterproof. To install suitable conditions in accordance with practical IP.



5. If it is crystal glue, please don't crook 30 degree, otherwise, it easily happens glue cracking
